V72G Series Air Line Pressure Relief Valves
PLACE ORDER
  • In-Line or Modular Installation
  • Push to Lock Adjusting Knob with Tamper Resistant Accessory
  • Helps Protect Air Operated Equipment from Over Pressure by Retarding Excessive Pressure Build Up
 Specs
 Manuals (contact with email : [email protected])
 Print
Description

Description


The V72G Series Air Pressure Relief Valves are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. A pressure relief valve is uses to protect pneumaticequipment from over pressure by retarding excessive pressure build up.As a modular component, this pressure relief valve can quickly be attached to air filters, lubricators, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

SPECIFICATIONS
Fluid: Compressed air
Maximum Pressure: 20 bar (300 psig)
Operating Temperature*:-34 to 65°C (-30 to 150°F)
MATERIALS
V72:
Gage Port: 18" PTF with PTF mainports; 18" ISO Rc with ISO Gmain ports
Exhaust Port: ¼" PTF with PTFmain ports; ¼" ISO Rc withISO G main ports
V72G:
Body: Zinc
Bonnet: Acetal
Elastomers: Neoprene
Bottom Plug: Acetal
V74G:
Body and Bonnet: Aluminum
Valve: Aluminum and nitrile
Elastomers: Nitrile
Bottom Plug: Acetal
* Air supply must be dry enough toavoid ice formation at temperatures below 2°C (35°F).

OPTIONS SELECTOR

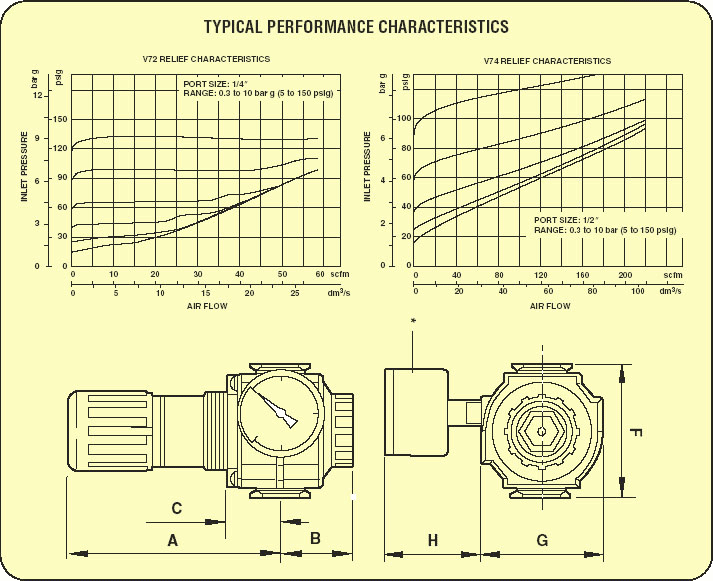

STANDARD DIMENSIONS (in)
SERIES A B C F G H PANEL DIA. PANEL DEPTH
72 2.87 0.98 1.02 1.97 1.89 1.38 1.57 0 to 0.2
74 5.00 1.69 1.22 3.15 2.91 2.20 2.05 0.08 to 0.2
METRIC DIMENSIONS (mm)
72 28.3 26.4 26.4 27.4 27.3 26.8 27.0 0 to 5
74 30.4 27.1 26.6 28.6 28.3 27.6 27.5 2 to 5
