SCE-XEL Series Electrical Disconnect Enclosure
PLACE ORDER
  • 0.075" Carbon Steel
  • Seams Continuously Welded and Ground Smooth
  • Flange Trough Collar Around All Sides Of Door Opening
  • Oil-Resistant Gasket
  • Collar Studs Provided for Mounting Optional Panels
  • Disconnect Cutout Provided On Flange
  • Concealed Hinge
  • Doors Are Interchangeable and Easily Removed By Pulling Hinge Pins
  • 3-Point Latching Mechanism
  • Latches Are Opened Or Closed With A Screwdriver (Optional Tamper-Resistant Inserts Are Available)
  • Mounting Holes on Back of Enclosure
  • Mounting Hardware, Sealing Washer and Hole Plug Included
  • Ground Stud On Door and Body
  • Black Zinc Die Cast Coinproof/ Padlocking Handle
  • Disconnect Switch (or Circuit Breaker) and Operating Mechanism Are Not Furnished with This Enclosure
 Specs
 Manuals (contact with email : [email protected])
 Print
Description

Description

Application
DISCONNECT ENCLOSURE TYPE 1
The SCE-XEL outdoor electrical enclosure is designed to house most standard type disconnects. For outdoor applicationa drip shield is recommended.

Finish
ANSI-61 gray powder coating inside andout over phosphatized surfaces. Optionalpanels are powder coated white.

Industry Standards
NEMA Type 4, 12 & 13
UL Listed Type 4, & 12
CSA Type 4 & 12
IEC 60529 IP 66

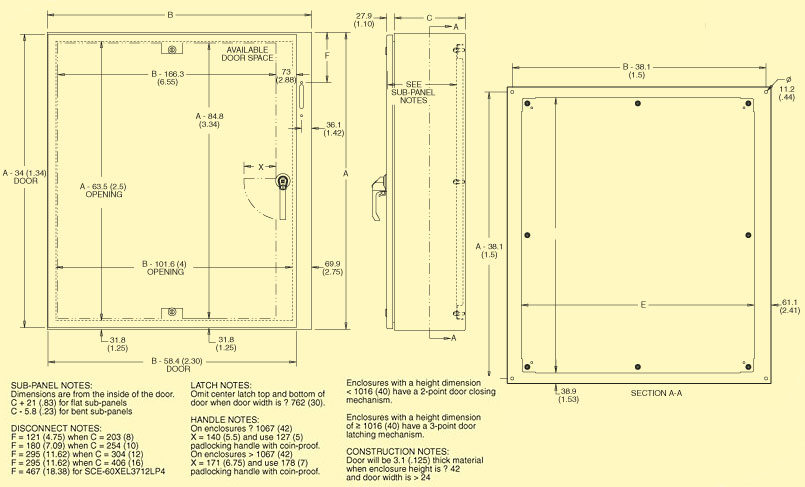

SCE_XEL Product Diagram
