Barrier Strips- Thermocouple Spade Lugs and Terminal Lugs
BSJ, SL and TL Series
PLACE ORDER - Color-Coded to Calibration Type
- Complete with Calibration Type Terminal Lugs Installed
- Spade Lugs Accepts Wire from 24 AWG to 16 AWG
Description
Description
 |
If your application requires DIN rail mounted termination, check out the DRTB Series Thermocouple Terminal Blocks - see related products on the info bar above.
|
Alloy Types
| Order Code | Thermocouple Alloy |
| CH | CHRtrodeks® |
| AL | ALtrodeks® |
| IR | Iron |
| CO | Constantan |
| CP | Copper (also R/S positive lead) |
| 11 | Alloy 11 (R/S negative lead) |
| 405 | Alloy 405 (type C positive lead) |
| 426 | Alloy 426 (type C negative lead) |
| 203 | Alloy 203 (type D positive lead) |
| 225 | Alloy 225 (type D negative lead) |
| 200 | Alloy 200 (type G positive lead) |
| 226 | Alloy 226 (type G negative lead) |
| NP | trodeks-P® |
| NN | trodeks-N® |

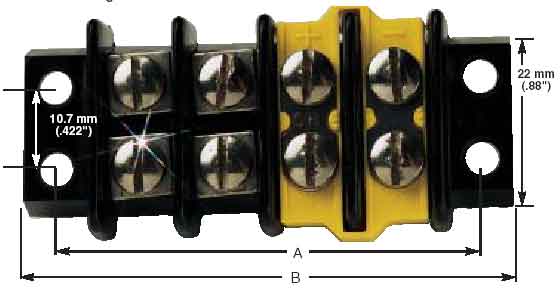

Barrier Strips
| Model No. | Number of
Terminals | Dimensions mm (inches) |
| A | B |
| BS2 | 2 | 33.34 (1.31") | 41.28 (1.63") |
| BS3 | 3 | 44.45 (1.75") | 52.39 (2.06") |
| BS4 | 4 | 55.55 (2.19") | 63.50 (2.50") |
| BS5 | 5 | 66.80 (2.63") | 74.60 (2.94") |
| BS6 | 6 | 77.79 (3.06") | 85.73 (3.38") |
| BS8 | 8 | 100.08 (3.94") | 107.95 (4.25") |
| BS10 | 10 | 122.24 (4.82") | 130.18 (5.13") |
| BS12 | 12 | 144.47 (5.69") | 152.40 (6.00") |
| BS16 | 16 | 188.92 (7.44") | 196.85 (7.75") |
| BS20 | 20 | 244.48 (9.63") | 252.42 (9.94") |
