Medium Weight Oil Immersion Heater 3 Element Design
MTO-3 Series
PLACE ORDER - 240 and 480V, 3 Phase
- 3 to 9kW
- Rugged Steel Sheath
- Low Watt Density for Heating Medium Weight Oils
- 2 1/2" NPT Steel Fitting
- General Purpose NEMA-1 Enclosure or Moisture Tight/Explosion Resistant Enclosure*
Description
Description

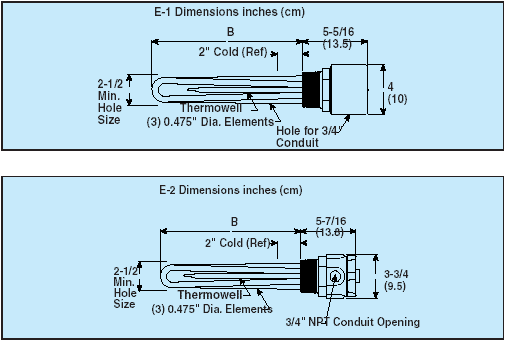

| kW | Volts | Phase | W/in2 | No. Htg.
Elem. | Dim. B
in (cm) | E1 General Purpose Enclosure1 | E2 Moisture Res/Explos. Res.†2 |
| Model No. | Wt.
Ib (kg) | Model No. | Wt.
Ib (kg) |
| 3 | 240 | 3 | 15 | 3 | 24 3/8 (62) | MTO-303/240 | 6 (7) | MTO-303E2/240 | 9 (3) |
| 3 | 480 | 3 | 15 | 3 | 24 3/8 (62) | MTO-303/480 | 6 (3) | MTO-303E2/480 | 9 (4) |
| 4 | 240 | 3 | 15 | 3 | 32 1/4 (82) | MTO-304/240 | 9 (3) | MTO-304E2/240 | 12 (5) |
| 4 | 480 | 3 | 15 | 3 | 32 1/4 (82) | MTO-304/480 | 9 (3) | MTO-304E2/480 | 12 (5) |
| 5 | 240 | 3 | 15 | 3 | 39 3/4 (101) | MTO-305/240 | 10 (4) | MTO-305E2/240 | 13 (5) |
| 6 | 240 | 3 | 15 | 3 | 47 1/4 (120) | MTO-306/240 | 11 (4) | MTO-306E2/240 | 14 (5) |
| 6 | 480 | 3 | 15 | 3 | 47 1/4 (120) | MTO-306/480 | 11 (3) | MTO-306E2/480 | 14 (5) |
| 7.5 | 240 | 3 | 15 | 3 | 57 (145) | MTO-307/240 | 14 (4) | MTO-307E2/240 | 17 (5) |
| 9 | 240 | 3 | 15 | 3 | 67 1/4 (171) | MTO-309/240 | 15 (4) | MTO-309E2/240 | 18 (5) |
†Caution: Explosion resistant type E2 construction refers to heater design features which provide explosion resisting containment of electricalwiring according to National Electric Code. Abnormal application or use of heaters which in excessive temperatures can create hazardousconditions which can lead to fire
Consult Section Z for data on allowable watt densities for more viscous materials.
1 Heaters with General Purpose Enclosures are UL Listed and CSA Certified.
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C Certified. Anemometer | Automation | Accelerometers | Calibrator | Cartridge Heaters | Chart Recorders | Cryogenics | Custom Pressure Transducers | Data Loggers | Data Acquisition | Dial Thermometers | Fiber Optics | Fiber Optic Temperature Measurement | Flexible Heaters | Flow Meters | Glass Bulb Thermometers | Grippers | Heaters | Humidity Measurement | Integrated Circuit Sensors | Immersion Heaters | Infrared Thermometers | Level Measurement | Load Cells | M12 Temperature Connectors | Magnetic Flow Meter | Panel Meter | PID Controllers | pH meter | Pressure Gauges | Pressure Transducers | Pressure Transmitters | Rotameters | RTD | Remote Process Monitoring | Sanitary Sensors | Signal Conditioners | Stepper Motors | Strain Gages | Strip Heaters | Temperature Controllers | Temperature Labels | Temperature Measurement | Temperature Sensor Manufacturing | Temperature Sensors | Temperature Transmitters | Thermal Imagers | Thermistors | Thermocouple | Thermocouple Wire | Thermowell | Ultrasonic Flow Meters | Vortex Flow Meter | Wireless Sensors
