Pipe Insert Heaters
MTO-LT Series
PLACE ORDER - For Insertion into 2" or Larger Pipe
- Moisture/Explosion Resistant Enclosure*
- 14 to 13 kW
- 240 and 480 V, 1 Phase
- 2" NPT Steel Screw Plug
- Lengths to 347"
- Incoloy Sheath Heating Elements
Description
Description
APPLICATIONS
For use in those applications where process materials can be heated by inserting heater into a 2" or largerpipe. A pipe union will facilitate installation and eliminate the need for twisting the elements inside thepipe. Clearance room should be considered.
FEATURES
Choice of materials and surface loadings (W/in2) permit operating inthe dead air space of pipes, tubes, or channels.
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualifiedpersonnel. See inside back cover for additional warning.

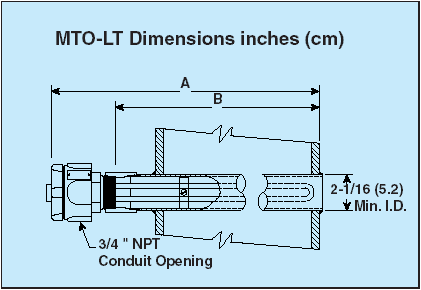

| kW | Volts | Phase | W/in2 | Dimensions—In. (cm) | Std.
Pipe
Thd. | Model No. | Weight
lb (kg) |
| A | B |
| 4 | 240 | 1 | 11.7 | 127(322) | 120(309) | 2"(5) | MTO-241LT/240 | 12 (5) |
| 4 | 480 | 1 | 11.7 | 127(322) | 120(309) | 2"(5) | MTO-241LT/480 | 12 (5) |
| 5 | 240 | 1 | 11.1 | 163(160) | 156(396) | 2"(5) | MTO-251LT/240 | 16 (7) |
| 5 | 480 | 1 | 11.1 | 163(160) | 156(396) | 2"(5) | MTO-251LT/480 | 16 (7) |
| 7.5 | 240 | 1 | 12.7 | 211(536) | 204(518) | 2"(5) | MTO-275LT/240 | 22 (10) |
| 7.5 | 480 | 1 | 12.7 | 211(536) | 204(518) | 2"(5) | MTO-275LT/480 | 22 (10) |
| 11.5 | 480 | 1 | 12.9 | 319(810) | 312(792) | 2"(5) | MTO-212LT/240 | 36 (16) |
| 13 | 480 | 1 | 12.5 | 367(932) | 360(914) | 2"(5) | MTO-213LT/480 | 42 (19) |
